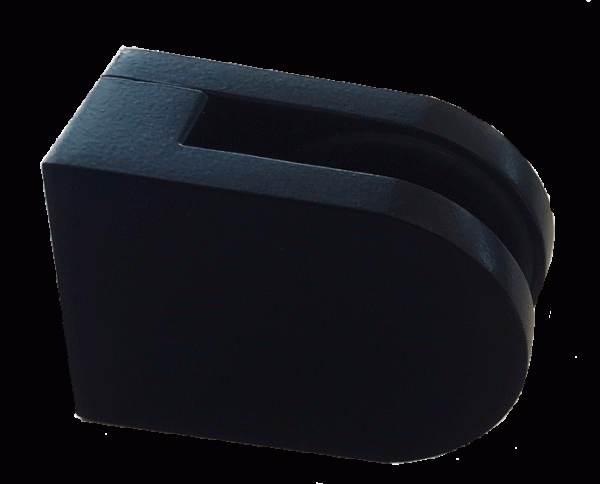

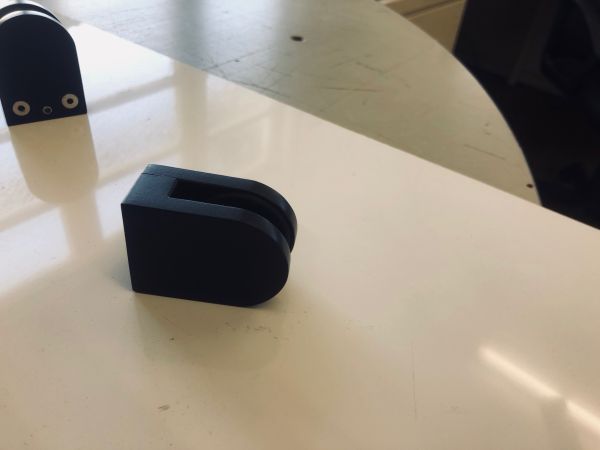

Round 'D' Shaped Glass Clamp

Glass clamp with flat base suitable use with or without hole in glass

Material:  316 marine grade Stainless Steel

Size:        63mm(W) x 45mm(H) x 26mm (Thick)

Finish:     Matt or Satin Black

Base:       Flat Base for mounting on flat surfaces.

Glass Thickness:  8mm, 10mm and 12mm glass.

Optional:   Retention Pin    -   Requires a hole in the glass

Price Includes GST.

Warrarnty: Please refer to website.

CODE: A1250

Please Note: Glass must only be installed in accordance with Australian Standards including AS 1288-1994  Glass in buildings - Selection and installation

Satin finishes are achieved by "roughening" the surface of the stainless steel. While this surface finish has a unique appearance it can trap dust and other contaminates.

Over time these can stain the stainless steel surface (teatree staining). The build up of contaminates on the stainless steel can be prevented by the application of surface sealers.

Contaminates (and stains) can be 'rejuvenated' by using stainless steel cleaners.

There are different grades of satin finish, which relate to how deeply the surface is roughened.

Jalex uses a relatively minor satin finish to reduce the extent of contaminate build up, however customers should be aware that even this surface finish will require periodic maintenance with a suitable cleaner.

Jalex recommends mirror finish for external applications but satin finishes can be used providing the customer accepts there will be a requirement to periodically maintain the surface finish .
